Kitchen Measuring Guide

Get accurate measurements of your kitchen before meeting with our design experts. This comprehensive guide will help you prepare everything needed for a successful consultation.

Getting Started

Before your consultation, take these three simple steps to ensure you're fully prepared for our design team.

Step 1

Come Prepared

Before your consultation, take these three simple steps to ensure you're fully prepared for our design team.

Step 2

Plan Your Appliances

Know what appliances you want (oven, refrigerator, dishwasher, microwave). Have the exact dimensions of each ready.

Step 3

Gather Reference Photos

Take clear photos of your current kitchen from multiple angles. Include close-ups of any challenging areas.

Step-by-Step Measuring Guide

Follow this comprehensive guide to ensure accurate measurements for your kitchen design consultation.

Wall Heights

Take measurements from floor to ceiling in several locations throughout your kitchen. Always provide the shortest height. Note any soffits or beams.

Measure at 3+ different points on each wall
Record the shortest measurement
Note ceiling obstacles (beams, soffits)

Wall Lengths

Measure the total length of each wall, accounting for all openings and appliance locations.

Corner to corner for each wall
Note the exact location of each doorway
Mark window positions and dimensions
Indicate all existing appliance locations

Appliance Details

Calculate the width, height, and depth of each appliance. Most appliances come in standard sizes but verify exact dimensions.

Width, height, and depth of stove
Width, height, and depth of refrigerator
Width, height, and depth of dishwasher
Microwave and other small appliances
Distance from corner to center of stove

Door & Window Openings

Accurate measurements of all openings are critical for layout planning.

Measure width of each window and doorway
Include trim width in measurements
Note distance from corner to trim start
Measure height of doorways (including trim)

Special Features

Don't forget about built-in features, bump-outs, or unique architectural elements.

Location and dimensions of chimneys
Beam and bump-out measurements
Electrical outlets and switch locations
Water line and gas line locations
Existing cabinet heights and depths

Take Reference Photos

Visual documentation is invaluable for our design team to understand your space better.

Overall kitchen from multiple angles
Close-up of each wall section
Detail shots of difficult areas
Current cabinet and appliance arrangement
Any areas you're concerned about

Ready to Measure?

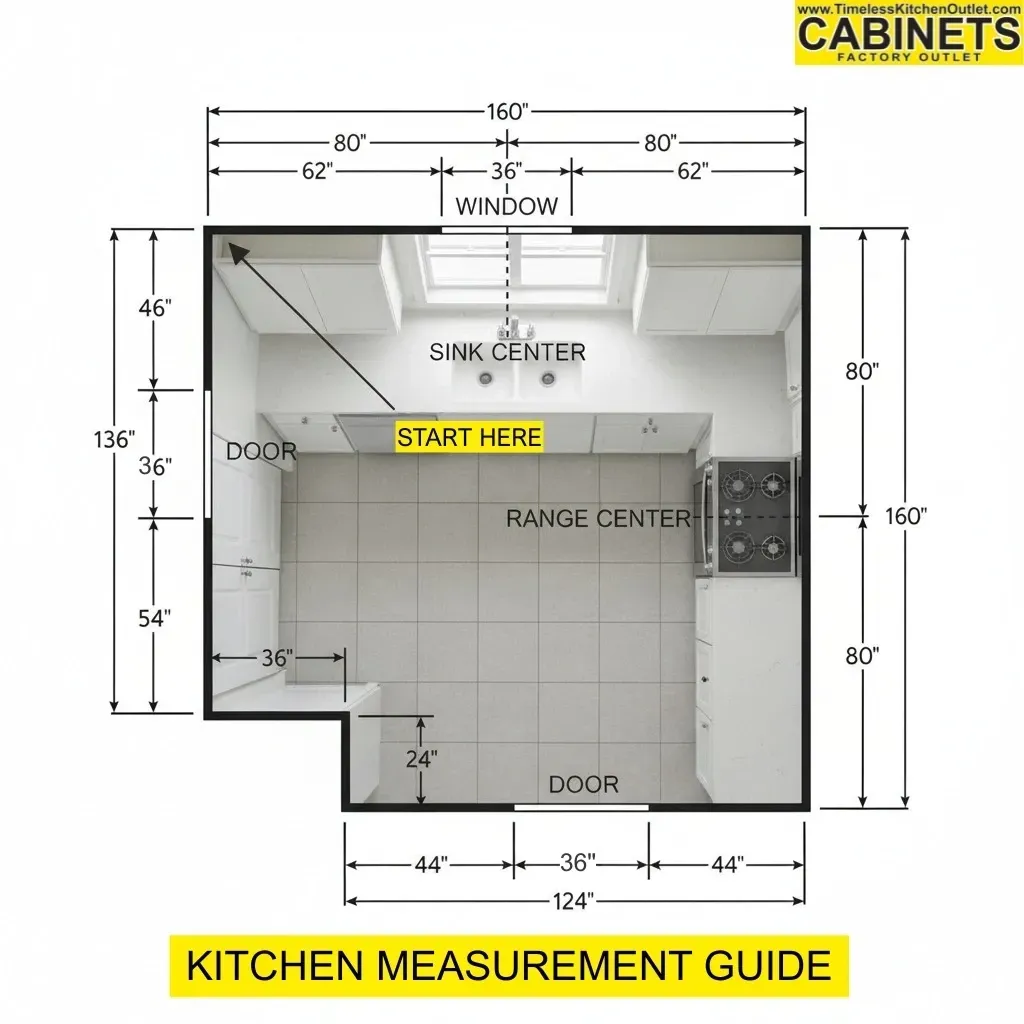

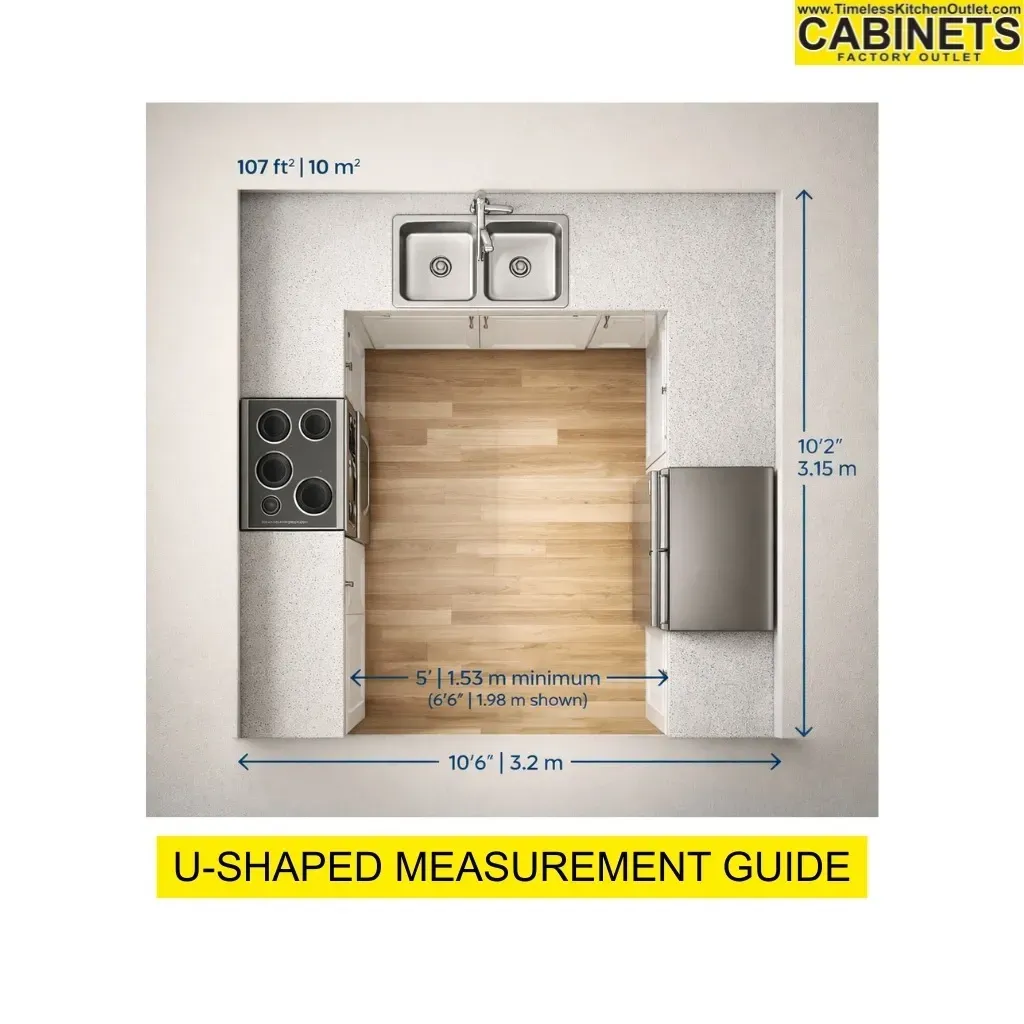

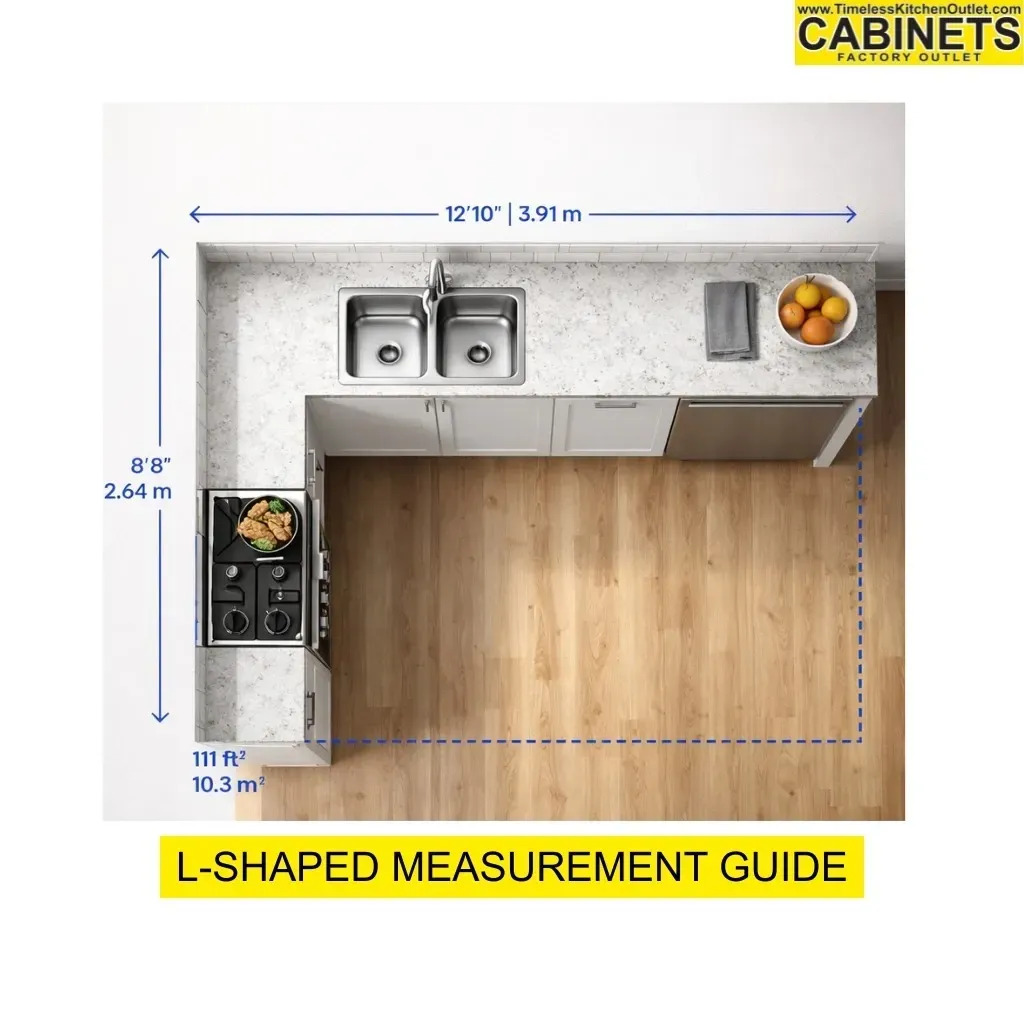

Check this image measuring guide to take with you while measuring your kitchen.

Need help measuring? Our team is happy to guide you through the process. Call us at (321) 284-2580
